Carport with Gable Roof - 3.6mW Gable x 6mL x 3.1mH

Carport with Gable Roof - 3.6mW Gable x 6mL x 3.1mH

Regular price $3,494.00 AUD
Regular price Sale price $3,494.00 AUD
Sale Sold out

We believe that having a Carport which is stylish & strong as well as functional is the key to a great carport. The robust fully bolted frame and subframe is perfect for added strength. The classic Gable or Skillion designs can be used to protect your cars, motorbikes, SUV, 4X4 and Caravans as well as being versatile enough to make a wonderful outdoor entertainment area and alfresco. Choosing a Shed City Carport from our exclusive designs provides you with a Carport structure others only dream about.

Perfect Carport, Alfresco | Entertainment space or exercise area with its bolted structure and unlike flimsy tek screw frame cousins braced here & there, our Shed City carports provide maximum clear span usable space through all seasons for years to come.

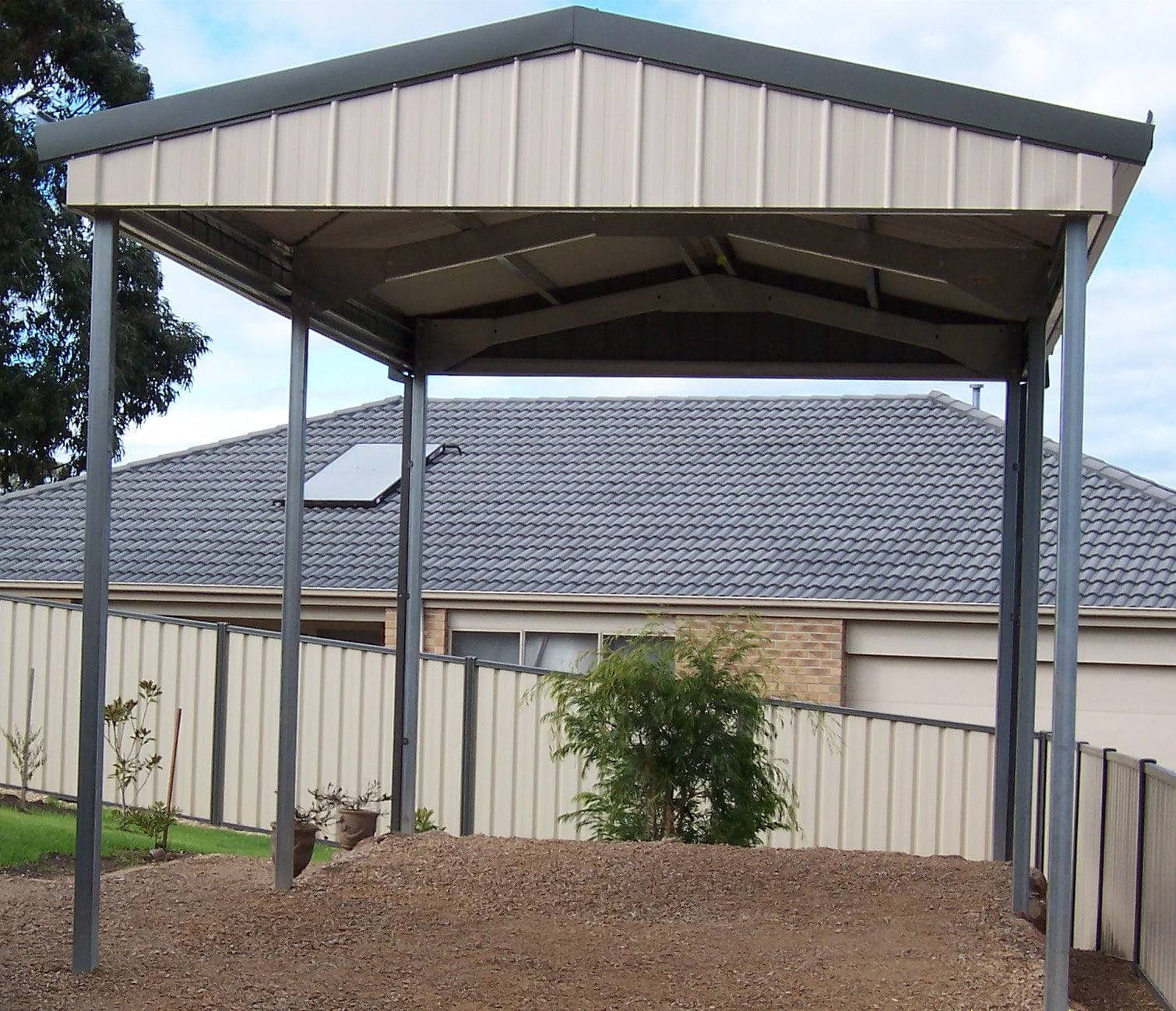

Gable Roof
3.6mW Gable x 6m L (2 x 3m bays) x 3.1m Wall height
12 degree roof pitch

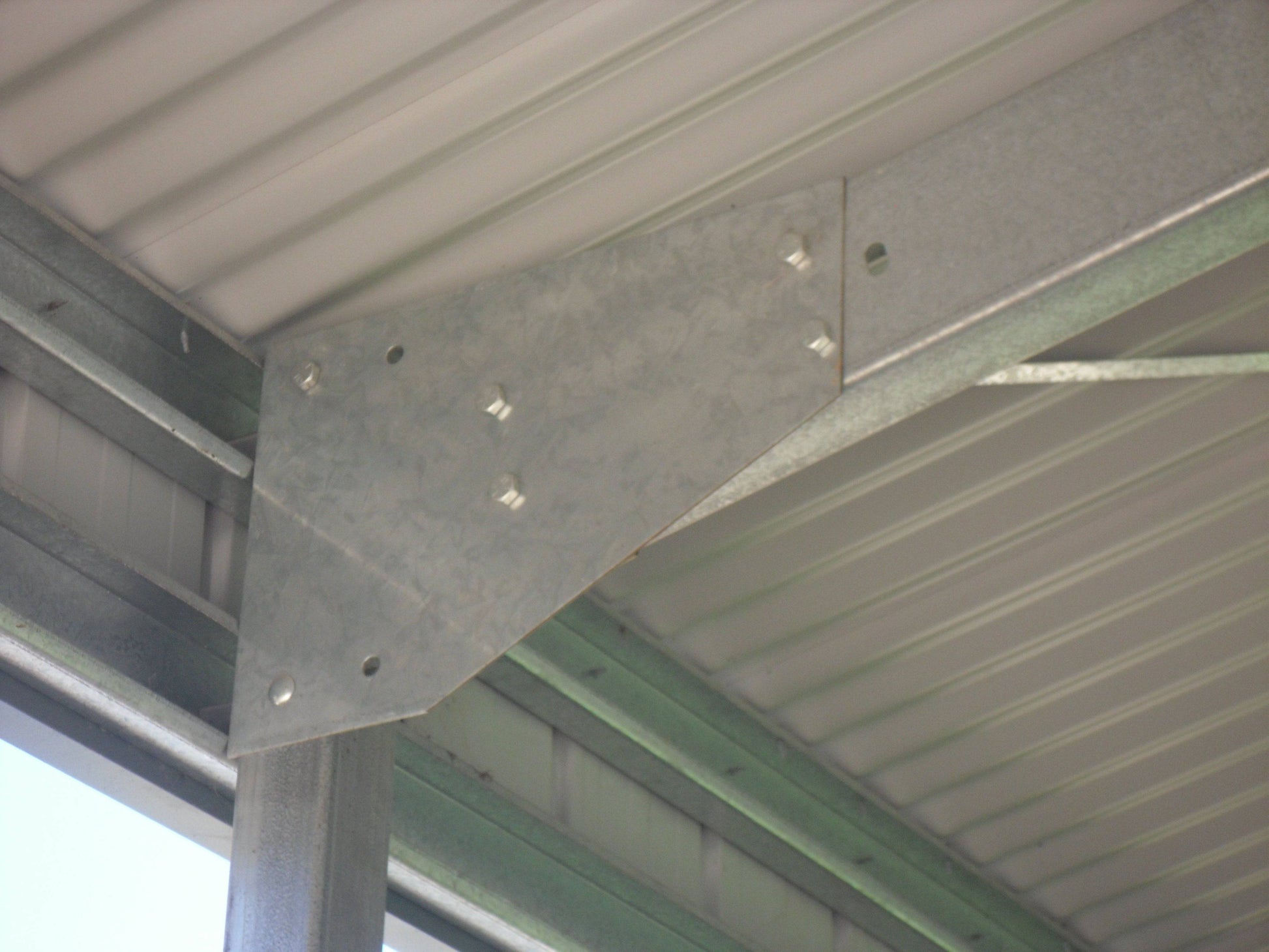

Fully bolted Galvanised Clear span portal frame
75mm SHS Posts
Rafters C150 pre-punched ready to bolt together (no tek screws in frame),
C100 pre-punched roof purlins and wall girts for fast bolting together

Colour – Custom Orb Corrugated Roof .47tct (.42bmt)
Colour – Ezy Panel Infill & Skirt side Wall sheets .47tct (.42bmt)Colour

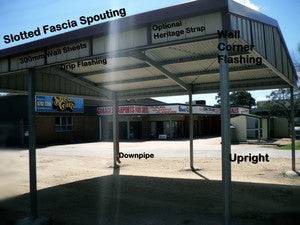

Wide Ridge flashing, Barge flashing, Squareline slotted Spouting, Downpipe, wide Wall corners flashings

Don’t pay extra to anchor your Carport - Yes included with your kit extra length in the post for embedding into concrete footings – no concrete floor required
The ideal DIY Kit Delivered to your Door. (within Shed City std delivery area, minimal extra for next zone or FREE collection from our Factory)

Order now for:
FREE Bonus Heritage finish with alternate color toned straps and corner flashings
FREE Bonus drip flashings to trim off the lower edge of the gable infill & side skirt sheets – limited Time Offer.

Add Extra features:
All designs can include optional extra height, skylights, ventilators, roller doors in any wall and / or enclose any wall.

Need a different size?

Gable Roof Carport - Widths (W) Clear span - 3m, 3.6m, 4m, 4.2mW, 4.8, 5.5, 6mW, 6.6m, 7m, 7.6mW

Lengths (L) in multiple bays such as 3m, 3.5m, 3.6m to suit your required length.
Call for even more options in widths and / or lengths

Wall Heights (H) 2.4mH, 2.52mH, 2.7mH, 2.8mH, 3mH, 3.1mH – Need a different height? Call or Email us now.

Roof designs: Gable 10°, 12°, 15°, 22° or Skillion 2°, 5°, 10°

To view some of our work and designs, come visit our displays in Kilmore, Victoria. If you’re looking for customised shed designs that fit perfectly with your property and needs, then you need Shed City. We will consult on custom shed builds across all of Melbourne and its surrounding regions in Victoria.


Our Garages, Carports, Sheds & other structural products are generally all Steel construction.

There are some timber, cubbies and plastic sheds/products.
Tanks & products may be poly.
Insulation products are a range of materials.

Please contact us for more information about a specific product or for assistance.


Width = Gable width or Skillion width

Length = Side wall usually has spouting / guttering

Height = Wall / Eave height

Peak Height = Height to top of Ridge or Highest point of the Skillion roof

Tanks may be diameter, height in inlet and/or outlet

Please contact us for specific product dimensions.

Care information

Steel sheds are like any other painted product and require regular cleaning.

Just like a car the painted finish requires careful gentle maintenance.

Timber, plastic or poly products require regular maintenance.

For care of a specific item please contact us.

View full details

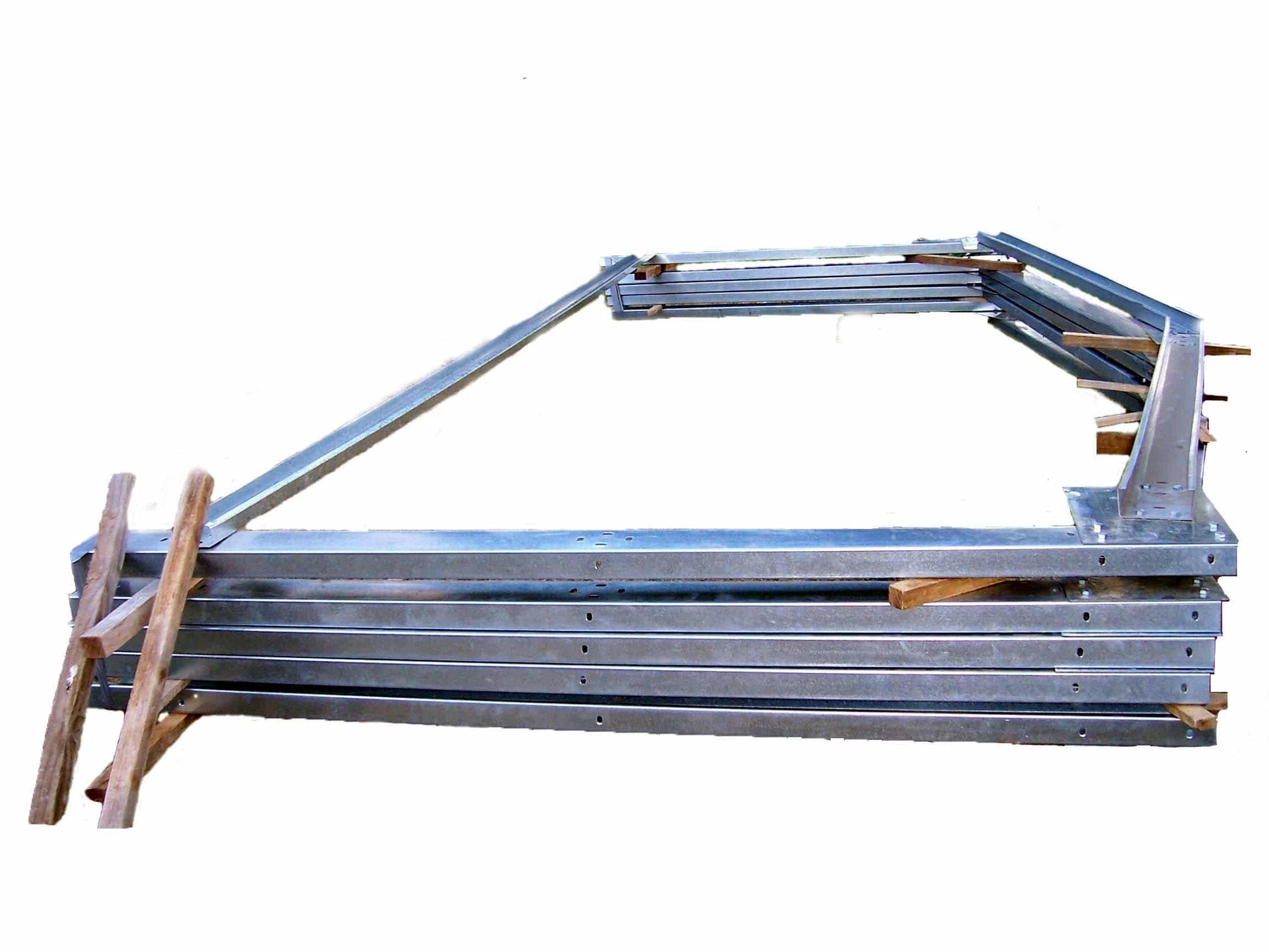

Build Faster, Build Perfection with All Bolted Frames

Proven Manufacture = Superior to Assemble

  • Designed for Handy person / Owner Builder / Installer
  • Pre-drilled "C" section portal frames
  • Pre-drilled "C" section Purlins & Girts
  • Hi Tensile Bolts & Nuts
  • Choice of Roofing Sheet Profiles
  • Choice of Wall sheet Profiles
  • Huge range of colours & combinations
  • Quality Flashings, Fixings & Fittings
  • Custom designs & Made to Order to Suit You!
