Shed City

Carport Skillion Roof 6mW x 6m deep x 2.5mH

Carport Skillion Roof 6mW x 6m deep x 2.5mH

Regular price $3,977.00 AUD
Regular price Sale price $3,977.00 AUD
Sale Sold out

Carports
We believe that having a Carport which is stylish & strong as well as functional is the key to a great carport. The robust fully bolted frame and subframe is perfect for added strength. The classic Gable or Skillion designs can be used to protect your cars, motorbikes, SUV, 4X4 and Caravans as well as being versatile enough to make a wonderful outdoor entertainment area and alfresco. Choosing a Shed City Carport from our exclusive designs provides you with a Carport structure others only dream about.


Perfect Carport, Alfresco | Entertainment space or exercise area with its bolted structure and unlike flimsy tek screw frame cousins braced here & there, our Shed City carports provide maximum clear span usable space through all seasons for years to come.

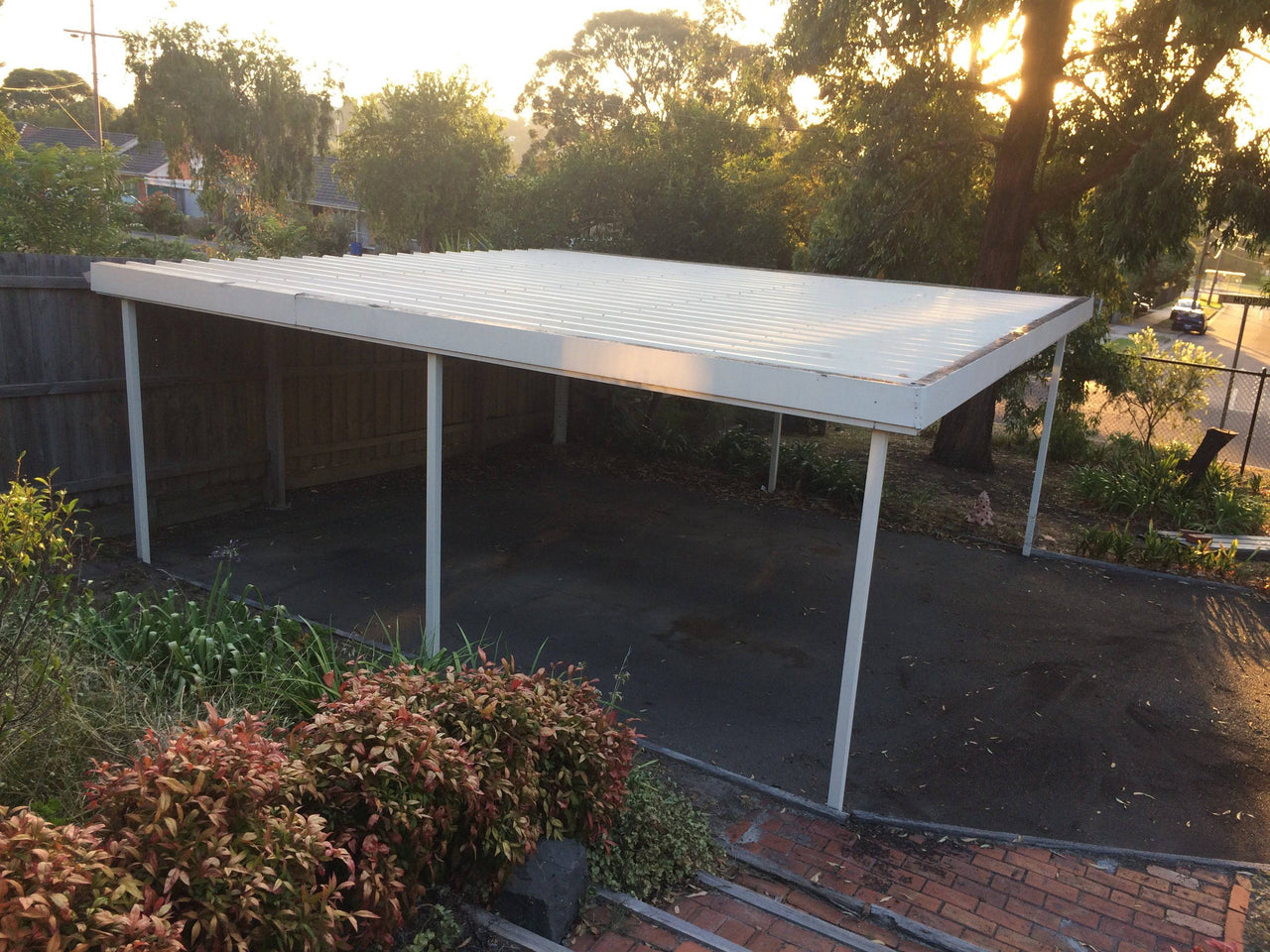

Skillion Roof

6mW Skillion x 6mL (front/back) x 2.5m Wall height -
5 degree roof pitch
Fully bolted Galvanised Clear span frame – 75mm SHS Posts and C150 Rafters pre-punched ready to bolt together (no tek screws in frame), C150 pre-punched roof beams for fast bolting together
Colour – 5 Rib Roof .47tct (.42bmt) Colour
Over & Under Barge flashing, Squareline slotted Spouting, Downpipe

6m Skillion available with 6 x posts or 4 x posts inset 1200mm (roof cantilevered)

Don’t pay extra to anchor your Carport - Yes included with your kit extra length in the post for embedding into concrete footings – no concrete floor required
The ideal DIY Kit Delivered to your Door. (within Shed City std delivery area, minimal extra for next zone or FREE collection from our Factory)

Add Extra features:
All designs can include optional extra height, skylights, ventilators, roller doors in any wall and / or enclose any wall.



Need a different size?



Skillion Roof Carports clear width 3m, 3.6m, 4m, 4.2mW, 4.8, 5.5, 6mW or add any widths together (use multiple widths) to cover a wider area
Lengths - any length subject to transport - 3m, 3.5m, 3.6m, 4m, 6m, 7m, 7.5m, 8m, 9m or ask for your required length.

 Call for even more options in widths and / or lengths


Heights: 2.4mH, 2.5mH, 2.7mH, 2.8mH, 3mH, 3.1mH or 3.6mH,– Need a different height? Call or Email us now.

Roof designs: Skillion 2°, 5°, 10°


To view some of our work and designs, come visit our displays in Kilmore, Victoria. If you’re looking for customised shed designs that fit perfectly with your property and needs, then you need Shed City. We will consult on custom shed builds across all of Melbourne and its surrounding regions in Victoria.

Materials

Our Garages, Carports, Sheds & other structural products are generally all Steel construction.

There are some timber, cubbies and plastic sheds/products.
Tanks & products may be poly.
Insulation products are a range of materials.

Please contact us for more information about a specific product or for assistance.

Dimensions

Width = Gable width or Skillion width

Length = Side wall usually has spouting / guttering

Height = Wall / Eave height

Peak Height = Height to top of Ridge or Highest point of the Skillion roof

Tanks may be diameter, height in inlet and/or outlet

Please contact us for specific product dimensions.

Care information

Steel sheds are like any other painted product and require regular cleaning.

Just like a car the painted finish requires careful gentle maintenance.

Timber, plastic or poly products require regular maintenance.

For care of a specific item please contact us.

View full details

Build Faster, Build Perfection with All Bolted Frames

Proven Manufacture = Superior to Assemble

  • Designed for Handy person / Owner Builder / Installer
  • Pre-drilled "C" section portal frames
  • Pre-drilled "C" section Purlins & Girts
  • Hi Tensile Bolts & Nuts
  • Choice of Roofing Sheet Profiles
  • Choice of Wall sheet Profiles
  • Huge range of colours & combinations
  • Quality Flashings, Fixings & Fittings
  • Custom designs & Made to Order to Suit You!
